HSMM: High-Speed Multimedia Projects |

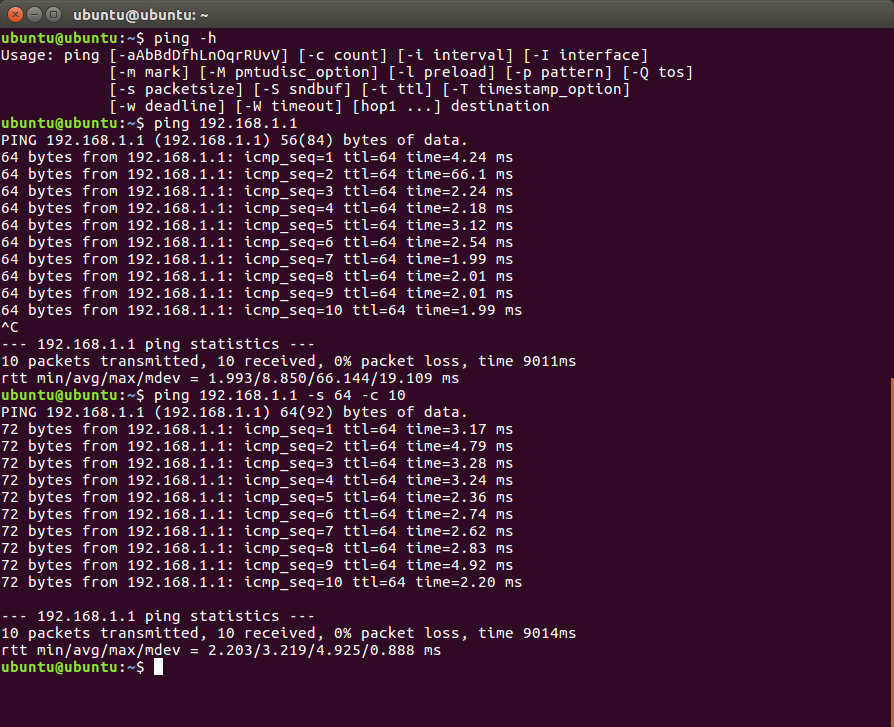

Networking tools range from a spectrum analyzer check the wireless RF signal to software tools like ping that check networking connectivity.
It's pretty simple to see which sector you are connected to. Just issue this command:
/interface wireless monitor 0
status: connected-to-ess
channel: 5900/5/an
wireless-protocol: nv2
tx-rate: 16.2Mbps-5MHz/1S
rx-rate: 16.2Mbps-5MHz/1S
ssid: HamWAN
bssid: E4:8D:8C:F1:6D:22
radio-name: Gold-S2/K7WAN
signal-strength: -57dBm
signal-strength-ch0: -57dBm
tx-signal-strength: -59dBm
tx-signal-strength-ch0: -59dBm
tx-signal-strength-ch1: -75dBm
noise-floor: -120dBm
signal-to-noise: 63dB
tx-ccq: 93%
rx-ccq: 93%
authenticated-clients: 1
current-distance: 10
wds-link: no
bridge: no
routeros-version: 6.41.3
last-ip: 169.48.173.167
current-tx-powers: 6Mbps:31(25/31),9Mbps:31(25/31),12Mbps:31(25/31),18Mbps:31(25/31),24Mbps:31(25/31),36Mbps:29(23/29),48Mbps:29(23/29),54Mbps:27(21/27),HT20-0:29(23/29),HT20-1:29(23/29),HT20-2:29(23/29),
HT20-3:29(23/29),HT20-4:29(23/29),HT20-5:27(21/27),HT20-6:27(21/27),HT20-7:26(20/26)
notify-external-fdb: no
Davids-MacBook-Pro:~ davidhaworth$ whois 44.24.242.55 % IANA WHOIS server % for more information on IANA, visit http://www.iana.org % This query returned 1 object refer: whois.arin.net inetnum: 44.0.0.0 - 44.255.255.255 organisation: Amateur Radio Digital Communications status: LEGACY whois: whois.arin.net changed: 1992-07 source: IANA # # ARIN WHOIS data and services are subject to the Terms of Use # available at: https://www.arin.net/whois_tou.html # # If you see inaccuracies in the results, please report at # https://www.arin.net/resources/whois_reporting/index.html # # Copyright 1997-2018, American Registry for Internet Numbers, Ltd. # # # Query terms are ambiguous. The query is assumed to be: # "n + 44.24.242.55" # # Use "?" to get help. # NetRange: 44.0.0.0 - 44.255.255.255 CIDR: 44.0.0.0/8 NetName: AMPRNET NetHandle: NET-44-0-0-0-1 Parent: () NetType: Direct Assignment OriginAS: Organization: Amateur Radio Digital Communications (ARDC) RegDate: 1992-06-30 Updated: 2009-06-19 Ref: https://rdap.arin.net/registry/ip/44.0.0.0 OrgName: Amateur Radio Digital Communications OrgId: ARDC Address: 5663 Balboa Ave Suite 432 City: San Diego StateProv: CA PostalCode: 92111-2705 Country: US RegDate: Updated: 2014-02-25 Ref: https://rdap.arin.net/registry/entity/ARDC OrgTechHandle: BK29-ARIN OrgTechName: Kantor, Brian OrgTechPhone: +1-619-693-2246 OrgTechEmail: abuse@ampr.org OrgTechRef: https://rdap.arin.net/registry/entity/BK29-ARIN OrgAbuseHandle: BK29-ARIN OrgAbuseName: Kantor, Brian OrgAbusePhone: +1-619-693-2246 OrgAbuseEmail: abuse@ampr.org OrgAbuseRef: https://rdap.arin.net/registry/entity/BK29-ARIN # # ARIN WHOIS data and services are subject to the Terms of Use # available at: https://www.arin.net/whois_tou.html # # If you see inaccuracies in the results, please report at # https://www.arin.net/resources/whois_reporting/index.html # # Copyright 1997-2018, American Registry for Internet Numbers, Ltd. #
FCC is a USA government organization that controls the use of the radio spectrum in USA.
Networking standard make digital communications possible.
Below are some networking standards that are used by wireless communications.
OSI is a very helpful model for understanding telecommunications such as HSMM.
