Summary

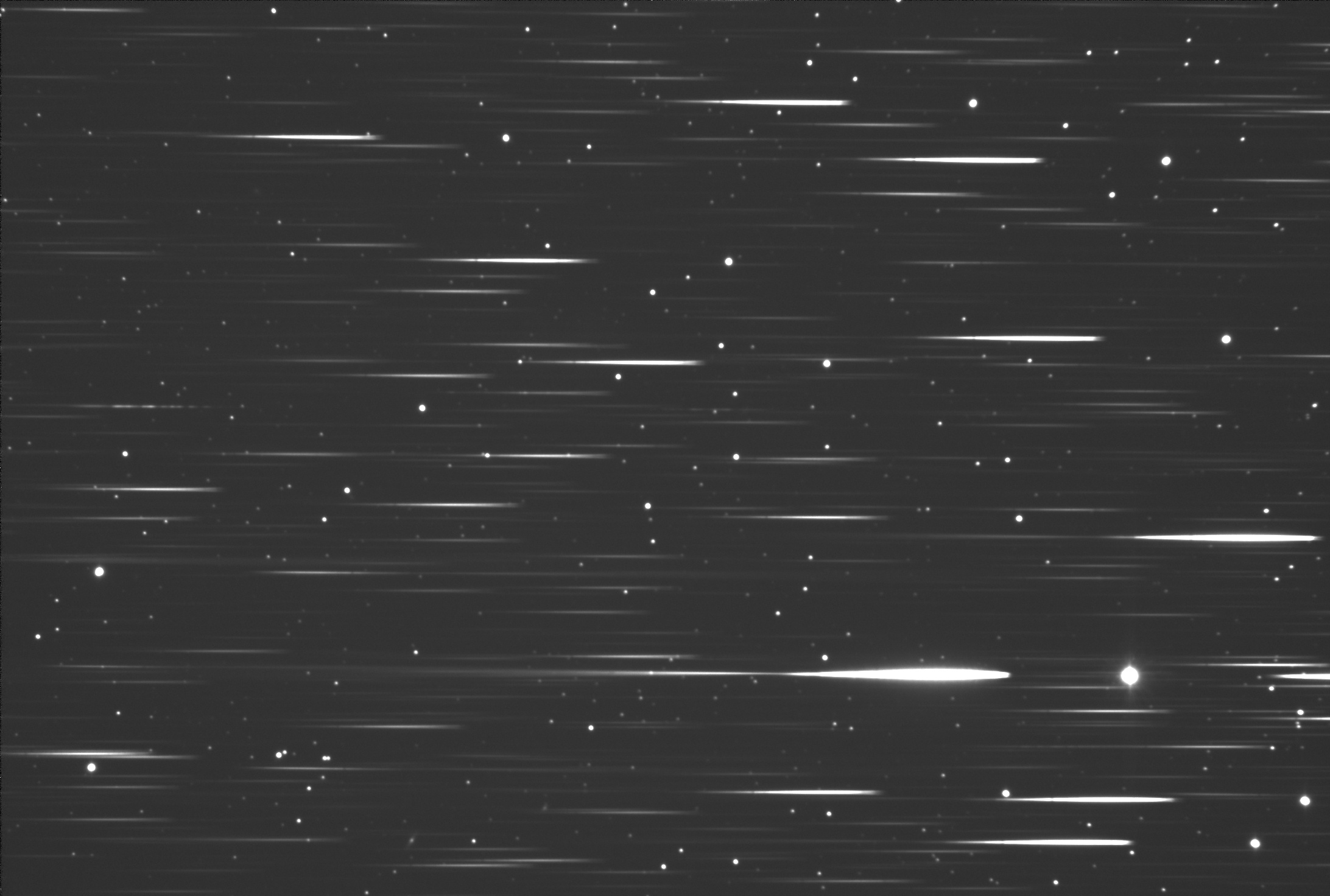

• The below image is full frame image with Quasar KUV18217+6419 located approximately in the center of the image.

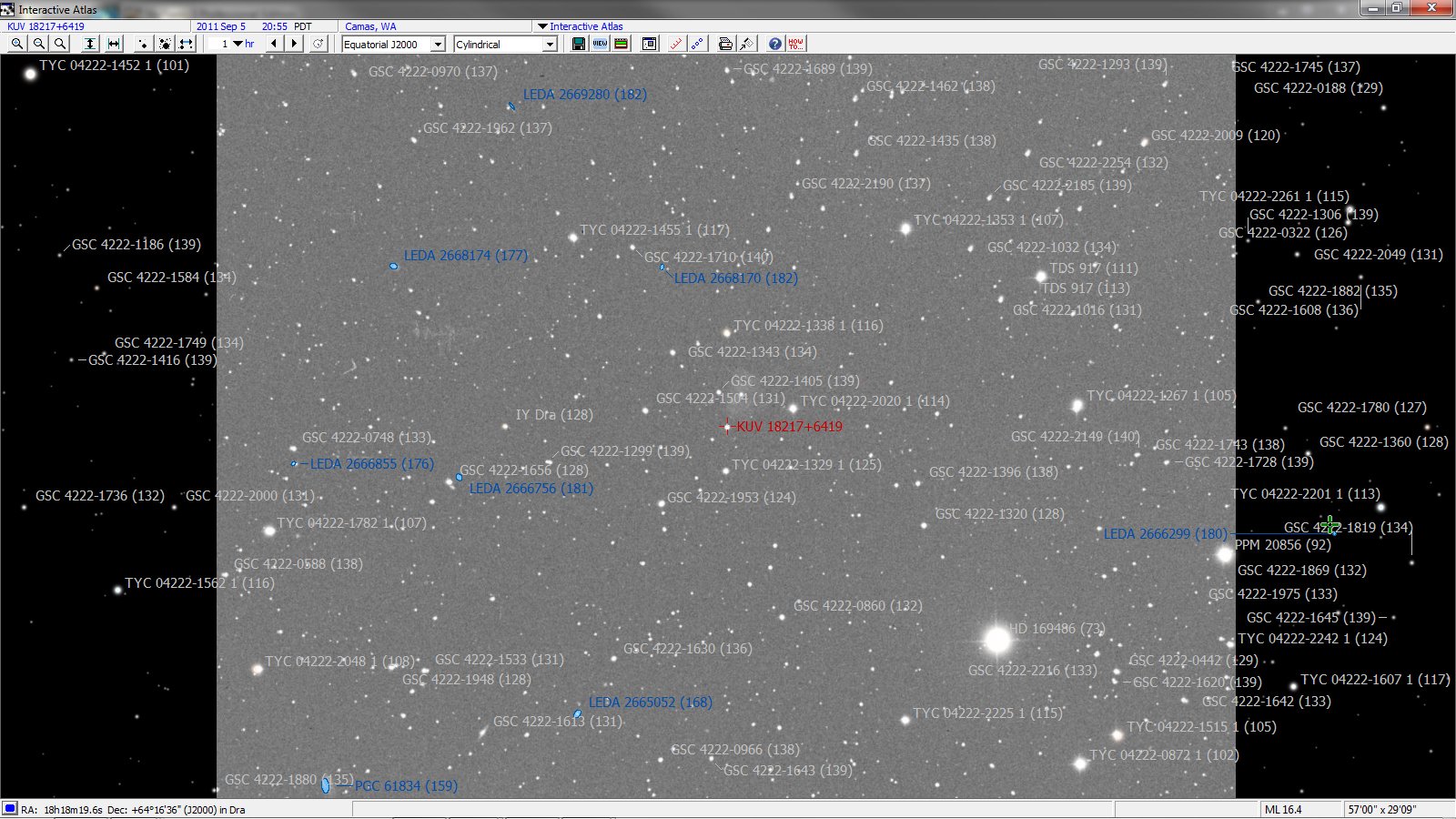

  • See the Sky Tools 3 with DSS Image screen capture below to locate Quasar KUV18217+6419.
• The image is calibrated with darks and flats.
• The image black point set to 275 and image white point set to 449 in order to see the background details.
• North is at the top edge of the image.
• The first order blazed grating spectrum is on the left side of the object (star, quasar or galaxy).
  • Compare the differences in brightness of the first order blazed grating spectrum on the left side with the first order un-blazed grating spectrum on the right side.
• The bright first order blazed grating spectrum is on the left side of the object.
  • Short wavelengths are at the right side of the spectrum.
  • Long wavelengths are at the left side of the spectrum.
    • Telluric O₂ absorption line at 7594 Å is seen in all the spectrums at the left end.
• The dim first order un-blazed grating spectrum is on the right side of the object.
  • Short wavelengths are at the left side of the spectrum.
  • Long wavelengths are at the right side of the spectrum.
    • Telluric O₂ absorption line at 7594 Å is seen in all the spectrums at the right end.
• The spectrums that stand out being different are:
  • Star IY Dra spectrum which is to the left of Quasar KUV18217+6419.
    • See the Sky Tools 3 with DSS Image screen capture below to located IY Dra.
  • Quasar KUV18217+6419 spectrum analysis
