Still more on Stone Haven Observatory

(Click on image for full size, undistorted view)

Click for

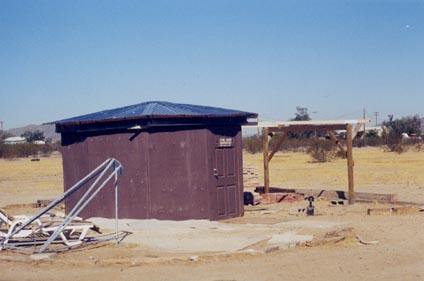

 full size This just shows the observatory from the ground with the roof closed. View is to the Northwest. Nice shot of the Pieramyd mount too, eh?
Click for

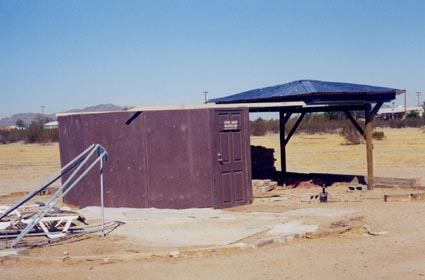

 full size Same view, but with the roof open.
Click for

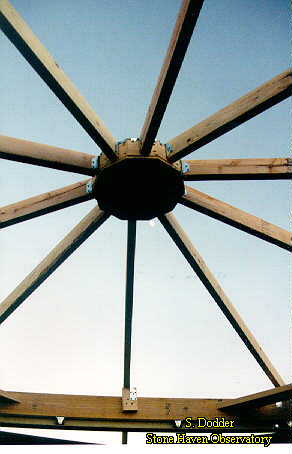

 full size This is a shot of the center of the roof framing, before the roofing tin was installed. I call it "the spider". See the moon between the ribs? I made the center piece by setting my table saw at 18 degrees, cutting 10 pieces of 2"x4" to 4" lengths and gluing them together. I attached 3/8" plywood panels to the top and bottom with glue and screws for stiffness. Then, I countersunk 2 screws per section into the sides for more support. The 4" length of each section is to accommodate joist hangers for the "ribs". It turned out great!
